HA9P2625-9 - Uncompensated Operational Amplifiers

📥 Download Datasheet

Datasheet preview – HA9P2625-9

Datasheet Details

Part number HA9P2625-9
Manufacturer Renesas
File Size 399.64 KB
Description Uncompensated Operational Amplifiers
Datasheet download datasheet HA9P2625-9 Datasheet
Additional preview pages of the HA9P2625-9 datasheet.

📁 Similar Datasheet

  • HA9P2625-9 - 100MHz/ High Input Impedance/ Very Wideband/ Uncompensated Operational Amplifiers (Intersil Corporation)
  • HA9P2625-5 - 100MHz/ High Input Impedance/ Very Wideband/ Uncompensated Operational Amplifiers (Intersil Corporation)
  • HA9P2425-5 - 3.2s Sample and Hold Amplifiers (Intersil Corporation)
  • HA9P2444-5 - 50MHz/ Selectable/ Four Channel Video Operational Amplifier (Intersil Corporation)
  • HA9P2525-5 - 20MHz/ High Slew Rate/ Uncompensated/ High Input Impedance/ Operational Amplifiers (Intersil Corporation)
  • HA9P2546-5 - 30MHz/ Voltage Output/ Two Quadrant Analog Multiplier (Intersil Corporation)
  • HA9P2556-9 - 57MHz/ Wideband/ Four Quadrant/ Voltage Output Analog Multiplier (Intersil Corporation)
  • HA9P2840-5 - 600MHz/ Very High Slew Rate Operational Amplifier (Harris Corporation)
  • HA9P2850-5 - 470MHz/ Low Power/ High Slew Operational Amplifier (Intersil Corporation)
  • HA9P4741-9 - Quad/ 3.5MHz/ Operational Amplifier (Intersil Corporation)
Other Datasheets by Renesas

    Full PDF Text Transcription

    Click to expand full text

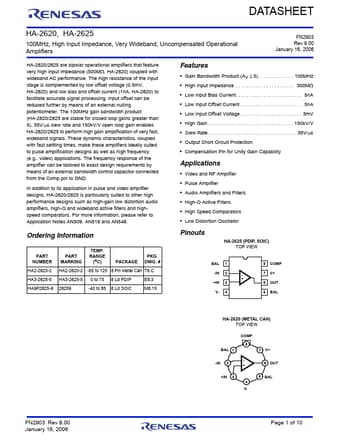

    DATASHEET HA-2620, HA-2625 100MHz, High Input Impedance, Very Wideband, Uncompensated Operational Amplifiers FN2903 Rev 8.00 January 16, 2006 HA-2620/2625 are bipolar operational amplifiers that feature very high input impedance (500M, HA-2620) coupled with wideband AC performance. The high resistance of the input stage is complemented by low offset voltage (0.5mV, HA-2620) and low bias and offset current (1nA, HA-2620) to facilitate accurate signal processing. Input offset can be reduced further by means of an external nulling potentiometer. The 100MHz gain bandwidth product (HA-2620/2625 are stable for closed loop gains greater than 5), 35V/s slew rate and 150kV/V open loop gain enables HA-2620/2625 to perform high gain amplification of very fast, wideband signals.
