HD74LS107AP - Dual J-K Negative-edge-triggered Flip-Flops

This page provides the datasheet information for the HD74LS107AP, a member of the HD74LS107A Dual J-K Negative-edge-triggered Flip-Flops family.

Datasheet Summary

Features

  • Ordering Information Part Name Package Type Package Code (Previous Code) Package Abbreviation HD74LS107AP DILP-14 pin PRDP0014AB-B (DP-14AV) P HD74LS107AFPEL SOP-14 pin (JEITA) PRSP0014DF-B FP (FP-14DAV) Note: Please consult the sales office for the above package availability. Taping Abbreviation (Quantity).
  • EL (2,000 pcs/reel) Pin Arrangement 1J 1 1Q 2 1Q 3 1K 4 2Q 5 2Q 6 GND 7 CLR J Q CK Q K Q K Q CK CLR J (Top view) 14 VCC 13 1CLR 12 1CK 11 2K 10 2C.

📥 Download Datasheet

Datasheet preview – HD74LS107AP

Datasheet Details

Part number HD74LS107AP
Manufacturer Renesas
File Size 195.96 KB
Description Dual J-K Negative-edge-triggered Flip-Flops
Datasheet download datasheet HD74LS107AP Datasheet
Additional preview pages of the HD74LS107AP datasheet.

📁 Similar Datasheet

  • HD74LS107A - Dual J-K Negative-edge-triggered Flip-Flops (Hitachi Semiconductor)
  • HD74LS10 - Triple 3-input Positive NAND Gates (Hitachi Semiconductor)
  • HD74LS109 - Dual J-K Positive-edge-triggered Flip-Flops (Hitachi Semiconductor)
  • HD74LS109A - Dual J-K Positive-edge-triggered Flip-Flops (Hitachi Semiconductor)
  • HD74LS11 - Triple 3-input Positive AND Gates (Hitachi Semiconductor)
  • HD74LS112 - Dual J-K Negative-edge-triggered Flip-Flops (Hitachi Semiconductor)
  • HD74LS113 - Dual J-K Negative-edge-triggered Flip-Flops (Hitachi Semiconductor)
  • HD74LS114 - Dual J-K Negative-edge-triggered Flip-Flops (Hitachi Semiconductor)
  • HD74LS12 - Triple 3-input Positive NAND Gates (Hitachi Semiconductor)
  • HD74LS122 - Retriggerable Monostable Multivibrators (Hitachi Semiconductor)
Other Datasheets by Renesas
  • HD74LS107A - Dual J-K Negative-edge-triggered Flip-Flops
  • HD74LS10 - Triple 3-Input Positive NAND Gates
  • HD74LS10P - Triple 3-Input Positive NAND Gates
  • HD74LS11 - Triple 3-input Positive AND Gates
  • HD74LS112 - Dual J-K Negative-edge-triggered Flip-Flops
  • HD74LS112P - Dual J-K Negative-edge-triggered Flip-Flops
  • HD74LS11P - Triple 3-input Positive AND Gates
  • HD74LS12 - Triple 3-input Positive NAND Gates

Full PDF Text Transcription

Click to expand full text

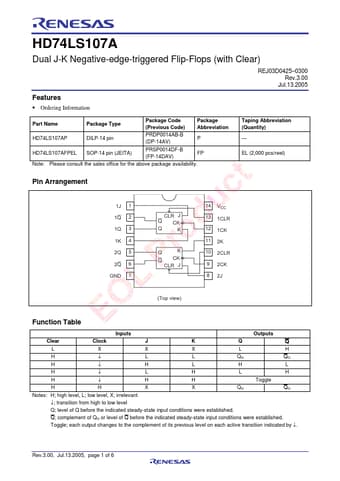

HD74LS107A Dual J-K Negative-edge-triggered Flip-Flops (with Clear) REJ03D0425–0300 Rev.3.00 Jul.13.2005 Features • Ordering Information Part Name Package Type Package Code (Previous Code) Package Abbreviation HD74LS107AP DILP-14 pin PRDP0014AB-B (DP-14AV) P HD74LS107AFPEL SOP-14 pin (JEITA) PRSP0014DF-B FP (FP-14DAV) Note: Please consult the sales office for the above package availability.
