HD74LS112P

Dual J-K Negative-edge-triggered Flip-Flops

HD74LS112P Features

* Ordering Information Part Name Package Type Package Code (Previous Code) Package Abbreviation HD74LS112P DILP-16 pin PRDP0016AE-B (DP-16FV) P HD74LS112FPEL SOP-16 pin (JEITA) PRSP0016DH-B FP (FP-16DAV) HD74LS112RPEL SOP-16 pin (JEDEC) PRSP0016DG-A (FP-16DNV) RP Note: Pleas

HD74LS112P Datasheet (241.48 KB)

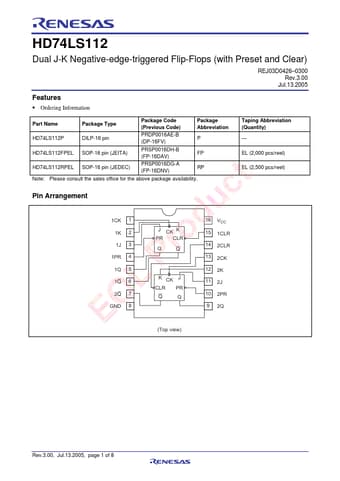

Preview of HD74LS112P PDF

Datasheet Details

Part number:

HD74LS112P

Manufacturer:

Renesas ↗

File Size:

241.48 KB

Description:

Dual j-k negative-edge-triggered flip-flops.
