IDT74LVC541A - 3.3V CMOS OCTAL BUFFER/DRIVER

IDT74LVC541A Description

IDT74LVC541A 3.3V CMOS OCTAL BUFFER/DRIVER WITH 3-STATE OUTPUTS 3.3V CMOS OCTAL BUFFER/DRIVER WITH 3-STATE OUTPUTS AND 5 VOLT TOLERANT I/O INDUSTRIAL.
The LVC541A octal buffer/driver is built using advanced dual metal CMOS technology.

IDT74LVC541A Features

* 0.5 MICRON CMOS Technology
* ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)
* VCC = 3.3V ± 0.3V, Normal Range
* VCC = 2.7V to 3.6V, Extended Range
* CMOS power levels (0.4μ W typ. static)
* Rail-to-rail outpu

IDT74LVC541A Applications

* 5V and 3.3V mixed voltage systems

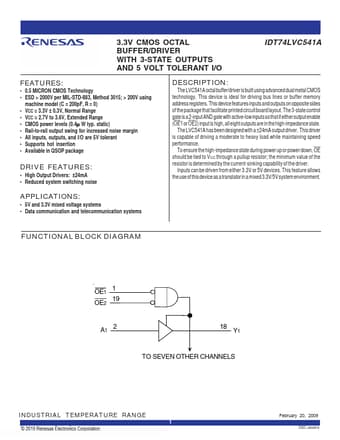

* Data communication and telecommunication systems FUNCTIONAL BLOCK DIAGRAM OE1 1 OE2 19 A1 2 18 Y1 TO SEVEN OTHER CHANNELS INDUSTRIAL TEMPERATURE RANGE 1 © 2006 Integrated Device Technology, Inc. February 20, 2009 DSC-4649/4 IDT74LVC541A 3.
