IDT74LVC574A Datasheet - IDT

IDT74LVC574A CMOS OCTAL EDGE-TRIGGERED D-TYPE FLIPFLOP

www.DataSheet4U.com IDT74LVC574A 3.3V CMOS OCTAL EDGE-TRIGGERED D-TYPE FLIP-FLOP INDUSTRIAL TEMPERATURE RANGE 3.3V CMOS OCTAL EDGE-TRIGGERED D-TYPE FLIPFLOP WITH 3-STATE OUTPUTS AND 5 VOLT TOLERANT I/O 0.5 MICRON CMOS Technology ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0) VCC = 3.3V ± 0.3V, Normal Range VCC = 2.7V to 3.6V, Extended Range CMOS power levels (0.4µ W typ. static) Rail-to-rail o.

IDT74LVC574A_IDT.pdf

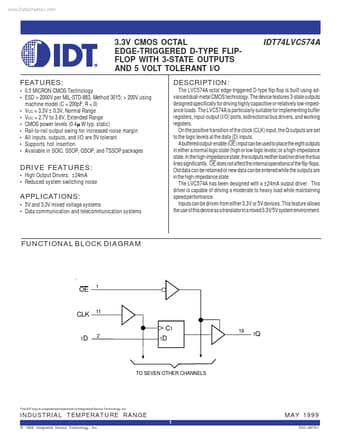

IDT74LVC574A Datasheet Preview — Preview of IDT74LVC574A PDF

Datasheet Details

Part number:

IDT74LVC574A

Manufacturer:

IDT

File Size:

90.20 KB

Description:

Cmos octal edge-triggered d-type flipflop.
