ISL1532 Datasheet, Driver, Renesas

ISL1532 Features

  • Driver
  • 450mA output drive capability
  • 44.4VP-P differential output drive into 100Ω
  • ±5V to ±15V supply operation
  • MTPR of -70dB
  • Operates down to

PDF File Details

Part number:

ISL1532

Manufacturer:

Renesas ↗

File Size:

1.53MB

Download:

📄 Datasheet

Description:

Dual channel differential dsl line driver.

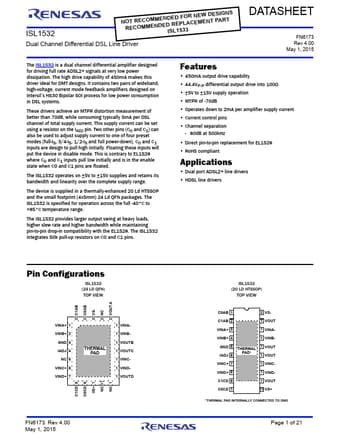

Datasheet Preview: ISL1532 📥 Download PDF (1.53MB)
Page 2 of ISL1532 Page 3 of ISL1532

ISL1532 Application

  • Applications
  • Dual port ADSL2+ line drivers
  • HDSL line drivers Pin Configurations ISL1532 (24 LD QFN) TOP VIEW 2 C1AB 2 C0AB 2 V
