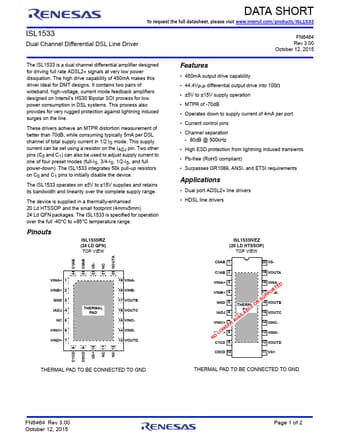

ISL1533 Dual Channel Differential DSL Line Driver DATA SHORT To request the full datasheet, please visit www.intersil.com/products/ISL1533 FN6464 Rev 3.00 October 12, 2015 The ISL1533 is a dual channel differential amplifier designed for driving full rate ADSL2+ signals at very low power dissipation.

The high drive capability of 450mA makes this driver ideal for DMT designs.

It contains two pairs of wideband, high-voltage, current mode feedback amplifiers designed on Intersil’s HS30 Bipolar SO

ISL1533 Features

* 450mA output drive capability

* 44.4VP-P differential output drive into 100

* ±5V to ±15V supply operation

* MTPR of -70dB

* Operates down to supply current of 4mA per port

* Current control pins

* Channel separation - 80dB @ 500kHz
