ISL1532A, Dual Channel Fixed Gain Differential DSL Line Driver

DATA SHORT NOT RECOMMENDED FOR NEW DESIGNS ISL1532A NO RToErCeqOuMesMt tEheNfDulEl dDatRaEshPeLetA, pCleEaMseEvNisTit www.intersil.com/products/ISL1.
only.

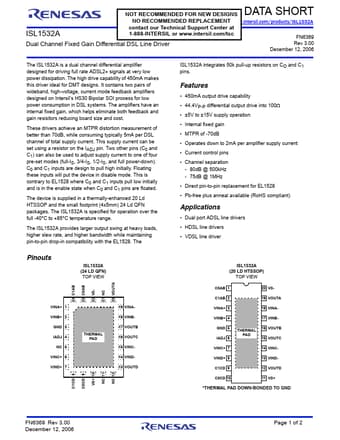

datasheet Preview Page 1 from Datasheet4u.com

ISL1532A-Renesas.pdf

ISL1532A Datasheet Preview — Preview of ISL1532A PDF

Datasheet Details

Part number:

ISL1532A

Manufacturer:

Renesas ↗

File Size:

189.89 KB

Description:

Dual Channel Fixed Gain Differential DSL Line Driver

Features

* 450mA output drive capability
* 44.4VP-P differential output drive into 100
* ±5V to ±15V supply operation
* Internal fixed gain
* MTPR of -70dB
* Operates down to 2mA per amplifier supply current
* Current control pins
* Channel sep

Applications

* Dual port ADSL line drivers
* HDSL line drivers
* VDSL line driver C1CD 8 C0CD 9 VS+ 10 NC 11 NC 12 Pinouts ISL1532A (24 LD QFN) TOP VIEW 24 C1AB 23 C0AB 22 VS21 NC 20 VOUTA VINA+ 1 VINB+ 2 GND 3 IADJ 4 NC 5 VINC+ 6 VIND+ 7 THERMAL PAD 19 VINA18 VINB17 VOUTB 16 VOUTC
