ISL1533A Dual Channel Differential DSL Line Driver

ISL1533A Dual Channel Differential DSL Line Driver The ISL1533A is a dual channel differential amplifier designed for driving high crest factor signals at very low distortion levels. The high drive capability of 450mA makes this driver ideal for DMT designs. It contains two pairs of wideband, high-voltage, current mode feedback amplifiers designed with the Renesas HS30 Bipolar SOI process for low power consumption in Asymmetric Digital Subscriber Line (ADSL) and Power Line Communications (PLC) s.

ISL1533A-Renesas.pdf

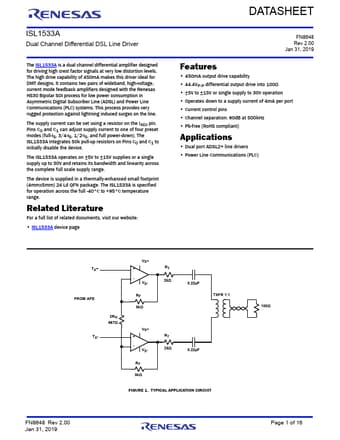

Preview of ISL1533A PDF
ISL1533A Datasheet Preview Page 2 ISL1533A Datasheet Preview Page 3

Datasheet Details

Part number:

ISL1533A

Manufacturer:

Renesas ↗

File Size:

1.23 MB

Description:

Dual channel differential dsl line driver.
