ISL23318

128-taps Low Voltage Digitally Controlled Potentiometer

ISL23318 Features

* 128 resistor taps

* I2C serial interface - No additional level translator for low bus supply - Two address pins allow up to four devices per bus

* Power supply - VCC = 1.7V to 5.5V analog power supply - VLOGIC = 1.2V to 5.5V I2C bus/logic power supply

* Wiper resist

ISL23318 General Description

MSOP 1 UTQFN 10 2 1 3 2 4 3 5 4 6 5 7 6 8 7 9 8 10 9 SYMBOL VLOGIC DESCRIPTION I2C bus /logic supply. Range 1.2V to 5.5V SCL Logic Pin - Serial bus clock input SDA Logic Pin - Serial bus data input/open drain output A0 Logic Pin - Hardwire slave address pin for I2C serial b.

ISL23318 Datasheet (0.97 MB)

Preview of ISL23318 PDF

Datasheet Details

Part number:

ISL23318

Manufacturer:

Renesas ↗

File Size:

0.97 MB

Description:

128-taps low voltage digitally controlled potentiometer.
ISL23318 Single, 128-taps Low Voltage Digitally Controlled Potentiometer (XDCP™) DATASHEET The ISL23318 is a volatile, low voltage, low noise, low p.

📁 Related Datasheet

ISL23315 - Low Voltage Digitally Controlled Potentiometer (Renesas)
DATASHEET ISL23315 Single, Low Voltage Digitally Controlled Potentiometer (XDCP™) FN7778 Rev 2.00 August 12, 2015 The ISL23315 is a volatile, low v.

ISL23325 - Low Voltage Digitally Controlled Potentiometer (Renesas)
DATASHEET ISL23325 Dual, 256-Tap, Low Voltage Digitally Controlled Potentiometer (XDCP™) FN7870 Rev 1.00 September 23, 2015 The ISL23325 is a volat.

ISL23328 - Low Voltage Digitally Controlled Potentiometer (Renesas)
DATASHEET ISL23328 Dual, 128-Tap, Low Voltage Digitally Controlled Potentiometer (XDCP™) FN7902 Rev 1.00 September 29, 2015 The ISL23328 is a volat.

ISL23345 - Low Voltage Digitally Controlled Potentiometer (Renesas)
ISL23345 NOT RECOMMENDED FOR NEW DESIGNS RECOMMENDED REPLACEMENT PART ISL23325 Quad, 256 Tap, Low Voltage Digitally Controlled Potentiometer (XDCP™).

ISL23348 - Low Voltage Digitally Controlled Potentiometer (Renesas)
  ISL95833 Dual 2+1 PWM Controller for IMVP-7/VR12 CPUs   Features Description Technical Documentation Pricing / Samples iSim Design Simulation Tool.

ISL23415 - Low Voltage Digitally Controlled Potentiometer (Renesas)
DATASHEET ISL23415 Single, Low Voltage Digitally Controlled Potentiometer (XDCP™) FN7780 Rev.3.00 Mar 17, 2022 The ISL23415 is a volatile, low volt.

ISL23418 - Low Voltage Digitally Controlled Potentiometer (Renesas)
DATASHEET ISL23418 Single, 128-Tap, Low Voltage Digitally Controlled Potentiometer (XDCP™) FN7901 Rev 1.00 September 24, 2015 The ISL23418 is a vol.

ISL23425 - Low Voltage Digitally Controlled Potentiometer (Renesas)
DATASHEET ISL23425 Dual, 256-Tap, Low Voltage Digitally Controlled Potentiometer (XDCP™) FN7873 Rev 1.00 September 11, 2015 The ISL23425 is a volat.

TAGS

ISL23318 128-taps Low Voltage Digitally Controlled Potentiometer Renesas

Image Gallery

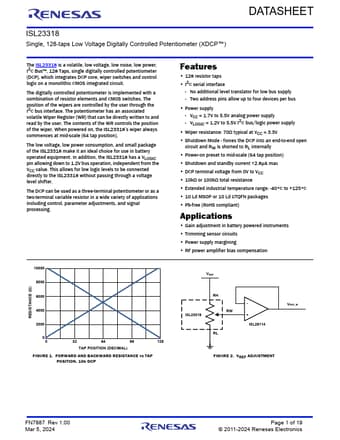

ISL23318 Datasheet Preview Page 2 ISL23318 Datasheet Preview Page 3
