ISL23325 Datasheet - Renesas

ISL23325 Low Voltage Digitally Controlled Potentiometer

TSSOP 1 2 µTQFN 6, 15 16 3 1 4 2 5 3 6 4 7 5 8 8 9 9 10 10 11 11 12 12 13 13 14 14 7 SYMBOL DESCRIPTION GND VLOGIC Ground pin I2C bus/logic supply. Range 1.2V to 5.5V SDA Logic Pin - Serial bus data input/open drain output SCL Logic Pin - Serial bus clock input A0 .
DATASHEET ISL23325 Dual, 256-Tap, Low Voltage Digitally Controlled Potentiometer (XDCP™) FN7870 Rev 1.00 September 23, 2015 The ISL23325 is a volatile, low voltage, low noise, low power, 256-Tap, dual digitally controlled potentiometer (DCP) with an I2C Bus™ interface. It integrates two DCP cores, wiper switches and control logic on a monolithic CMOS integrated circuit. Each digitally controlled potentiometer is implemented with a combination of resistor elements and CMOS switches. The positi.

ISL23325 Features

* Two potentiometers per package

* 256 resistor taps

* 10kΩ 50kΩ or 100kΩ total resistance

* I2C serial interface - No additional level translator for low bus supply - Three address pins allow up to eight devices per bus

* Maximum supply current without serial

ISL23325 Datasheet (1.10 MB)

Preview of ISL23325 PDF

Datasheet Details

Part number:

ISL23325

Manufacturer:

Renesas ↗

File Size:

1.10 MB

Description:

Low voltage digitally controlled potentiometer.

📁 Related Datasheet

ISL23328 Low Voltage Digitally Controlled Potentiometer (Renesas)

ISL23315 Low Voltage Digitally Controlled Potentiometer (Renesas)

ISL23318 128-taps Low Voltage Digitally Controlled Potentiometer (Renesas)

ISL23345 Low Voltage Digitally Controlled Potentiometer (Renesas)

ISL23348 Low Voltage Digitally Controlled Potentiometer (Renesas)

ISL23415 Low Voltage Digitally Controlled Potentiometer (Renesas)

ISL23418 Low Voltage Digitally Controlled Potentiometer (Renesas)

ISL23425 Low Voltage Digitally Controlled Potentiometer (Renesas)

ISL23428 Low Voltage Digitally Controlled Potentiometer (Renesas)

ISL23445 Low Voltage Digitally Controlled Potentiometer (Renesas)

Stock and price

Distributor
Renesas Electronics Corporation
ISL23325WFRUZ-T7A
249 In Stock
Qty : 100 units
Unit Price : $2.63

TAGS

ISL23325 Low Voltage Digitally Controlled Potentiometer Renesas

Image Gallery

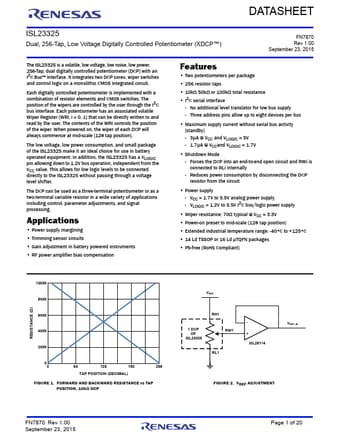

ISL23325 Datasheet Preview Page 2 ISL23325 Datasheet Preview Page 3
