ISL28130 - RRIO Operational Amplifiers

Datasheet Summary

Description

2.

.

Features

  • Low input offset voltage: 40µV, Max.
  • Low offset drift: 150nV/°C, Max.
  • Input bias current: 250pA, Max.
  • Quiescent current (per amplifier): 20µA, typical.
  • Single supply range: +1.8V to +5.5V.
  • Dual supply range: ±0.9V to ±2.75V.
  • Low noise (0.01Hz to 10Hz): 1.1µVP-P, typical.
  • Rail-to-rail inputs and output.

📥 Download Datasheet

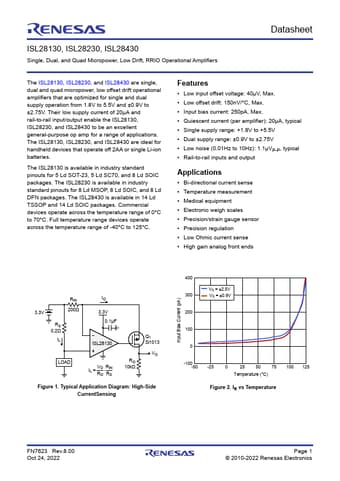

Datasheet preview – ISL28130

Datasheet Details

Part number ISL28130
Manufacturer Renesas
File Size 480.62 KB
Description RRIO Operational Amplifiers
Datasheet download datasheet ISL28130 Datasheet
Additional preview pages of the ISL28130 datasheet.

📁 Similar Datasheet

  • ISL28146 - (ISL28146 / ISL28246) Single and Dual Rail-to-Rail Input-Output (RRIO) Op Amps (Intersil Corporation)
  • ISL28195 - (ISL28194 / ISL28195) Rail-to-Rail Input/Output (RRIO) Op Amps (Intersil Corporation)
  • ISL28246 - Op Amps (Intersil Corporation)
  • ISL28256 - Low Input Bias Current Op Amps (Intersil Corporation)
  • ISL28266 - Op Amps (Intersil Corporation)
  • ISL28274 - Operational Amplifier (Intersil Corporation)
  • ISL28278 - (ISL28278 / ISL28478) Dual Micropower Single Supply Rail-to-Rail Input and Output (RRIO) Precision Op-Amp (Intersil Corporation)
  • ISL28448 - Op Amps (Intersil Corporation)
  • ISL28474 - Operational Amplifier (Intersil Corporation)
  • ISL28478 - (ISL28278 / ISL28478) Dual Micropower Single Supply Rail-to-Rail Input and Output (RRIO) Precision Op-Amp (Intersil Corporation)
Other Datasheets by Renesas
  • ISL28133 - RRIO Operational Amplifier
  • ISL28133A - Single Micro-Power High-Precision RRIO CMOS Operational Amplifier
  • ISL28134 - Zero Drift Rail-to-Rail Precision Op Amp
  • ISL28136 - Single Precision Rail-to-Rail Input-Output (RRIO) Op Amp
  • ISL28138 - Rail-to-Rail Input-Output (RRIO) Op Amps
  • ISL28107 - Low Noise Operational Amplifiers
  • ISL28108 - Low Power Operational Amplifier
  • ISL28110 - Precision Low Noise JFET Operational Amplifiers

Full PDF Text Transcription

Click to expand full text
ISL28130, ISL28230, ISL28430 Single, Dual, and Quad Micropower, Low Drift, RRIO Operational Amplifiers Datasheet The ISL28130, ISL28230, and ISL28430 are single, dual and quad micropower, low offset drift operational amplifiers that are optimized for single and dual supply operation from 1.8V to 5.5V and ±0.9V to ±2.75V. Their low supply current of 20µA and rail-to-rail input/output enable the ISL28130, ISL28230, and ISL28430 to be an excellent general-purpose op amp for a range of applications. The ISL28130, ISL28230, and ISL28430 are ideal for handheld devices that operate off 2AA or single Li-ion batteries. The ISL28130 is available in industry standard pinouts for 5 Ld SOT-23, 5 Ld SC70, and 8 Ld SOIC packages.
