ISL28136 - Single Precision Rail-to-Rail Input-Output (RRIO) Op Amp

Datasheet Summary

Features

  • a gain-bandwidth product of 5MHz and is unity-gain stable with a -3dB bandwidth of 13MHz. This device features an Input Range Enhancement Circuit (IREC), which enables it to maintain CMRR performance for input voltages greater than the positive supply. The input signal is capable of swinging 0.25V above the positive supply and to the negative supply with only a slight degradation of the CMRR performance. The output operation is rail-to-rail. The part typically draws less than 1mA supply current.

📥 Download Datasheet

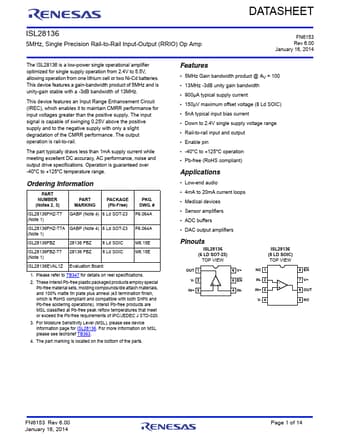

Datasheet preview – ISL28136

Datasheet Details

Part number ISL28136
Manufacturer Renesas
File Size 0.97 MB
Description Single Precision Rail-to-Rail Input-Output (RRIO) Op Amp
Datasheet download datasheet ISL28136 Datasheet
Additional preview pages of the ISL28136 datasheet.

📁 Similar Datasheet

  • ISL28146 - (ISL28146 / ISL28246) Single and Dual Rail-to-Rail Input-Output (RRIO) Op Amps (Intersil Corporation)
  • ISL28195 - (ISL28194 / ISL28195) Rail-to-Rail Input/Output (RRIO) Op Amps (Intersil Corporation)
  • ISL28246 - Op Amps (Intersil Corporation)
  • ISL28256 - Low Input Bias Current Op Amps (Intersil Corporation)
  • ISL28266 - Op Amps (Intersil Corporation)
  • ISL28274 - Operational Amplifier (Intersil Corporation)
  • ISL28278 - (ISL28278 / ISL28478) Dual Micropower Single Supply Rail-to-Rail Input and Output (RRIO) Precision Op-Amp (Intersil Corporation)
  • ISL28448 - Op Amps (Intersil Corporation)
  • ISL28474 - Operational Amplifier (Intersil Corporation)
  • ISL28478 - (ISL28278 / ISL28478) Dual Micropower Single Supply Rail-to-Rail Input and Output (RRIO) Precision Op-Amp (Intersil Corporation)
Other Datasheets by Renesas
  • ISL28130 - RRIO Operational Amplifiers
  • ISL28133 - RRIO Operational Amplifier
  • ISL28133A - Single Micro-Power High-Precision RRIO CMOS Operational Amplifier
  • ISL28134 - Zero Drift Rail-to-Rail Precision Op Amp
  • ISL28138 - Rail-to-Rail Input-Output (RRIO) Op Amps
  • ISL28107 - Low Noise Operational Amplifiers
  • ISL28108 - Low Power Operational Amplifier
  • ISL28110 - Precision Low Noise JFET Operational Amplifiers

Full PDF Text Transcription

Click to expand full text
DATASHEET ISL28136 5MHz, Single Precision Rail-to-Rail Input-Output (RRIO) Op Amp FN6153 Rev 6.00 January 16, 2014 The ISL28136 is a low-power single operational amplifier optimized for single supply operation from 2.4V to 5.5V, allowing operation from one lithium cell or two Ni-Cd batteries. This device features a gain-bandwidth product of 5MHz and is unity-gain stable with a -3dB bandwidth of 13MHz. This device features an Input Range Enhancement Circuit (IREC), which enables it to maintain CMRR performance for input voltages greater than the positive supply. The input signal is capable of swinging 0.25V above the positive supply and to the negative supply with only a slight degradation of the CMRR performance. The output operation is rail-to-rail.
