ISL28134 - Zero Drift Rail-to-Rail Precision Op Amp

Datasheet Summary

Description

ISL28134 (8 Ld SOIC) 2 3 ISL28134 (5 Ld SOT-23) 4 3 4 2 6 1 7 5 1, 5, 8 - PIN NAME IN- IN+ FUNCTION Inverting input Non-inverting input V- Negative supply OUT Output V+ Positive supply NC No Connect (See Circuit 1) EQUIVALENT CIRCUIT V+ AM IN+ IN- AN V- OSC Circuit 1

Features

  • Rail-to-rail inputs and outputs - CMRR at VCM = 0.1V beyond VS.
  • . . 135dB, typ - VOH and VOL.
  • . . .10mV from VS, typ.
  • No 1/f noise corner down to 0.1Hz - Input noise voltage.
  • . . 10nV/Hz at 1kHz - 0.1Hz to 10Hz noise voltage.
  • . . 250nVP-P.
  • Low offset voltage.
  • . 2.5µV, Max.
  • Superb offset drift.

📥 Download Datasheet

Datasheet preview – ISL28134

Datasheet Details

Part number ISL28134
Manufacturer Renesas
File Size 2.69 MB
Description Zero Drift Rail-to-Rail Precision Op Amp
Datasheet download datasheet ISL28134 Datasheet
Additional preview pages of the ISL28134 datasheet.

📁 Similar Datasheet

  • ISL28146 - (ISL28146 / ISL28246) Single and Dual Rail-to-Rail Input-Output (RRIO) Op Amps (Intersil Corporation)
  • ISL28195 - (ISL28194 / ISL28195) Rail-to-Rail Input/Output (RRIO) Op Amps (Intersil Corporation)
  • ISL28246 - Op Amps (Intersil Corporation)
  • ISL28256 - Low Input Bias Current Op Amps (Intersil Corporation)
  • ISL28266 - Op Amps (Intersil Corporation)
  • ISL28274 - Operational Amplifier (Intersil Corporation)
  • ISL28278 - (ISL28278 / ISL28478) Dual Micropower Single Supply Rail-to-Rail Input and Output (RRIO) Precision Op-Amp (Intersil Corporation)
  • ISL28448 - Op Amps (Intersil Corporation)
  • ISL28474 - Operational Amplifier (Intersil Corporation)
  • ISL28478 - (ISL28278 / ISL28478) Dual Micropower Single Supply Rail-to-Rail Input and Output (RRIO) Precision Op-Amp (Intersil Corporation)
Other Datasheets by Renesas
  • ISL28130 - RRIO Operational Amplifiers
  • ISL28133 - RRIO Operational Amplifier
  • ISL28133A - Single Micro-Power High-Precision RRIO CMOS Operational Amplifier
  • ISL28136 - Single Precision Rail-to-Rail Input-Output (RRIO) Op Amp
  • ISL28138 - Rail-to-Rail Input-Output (RRIO) Op Amps
  • ISL28107 - Low Noise Operational Amplifiers
  • ISL28108 - Low Power Operational Amplifier
  • ISL28110 - Precision Low Noise JFET Operational Amplifiers

Full PDF Text Transcription

Click to expand full text

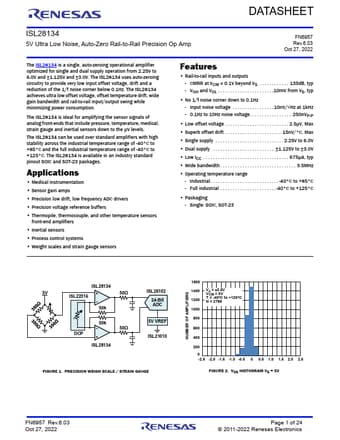

DATASHEET ISL28134 5V Ultra Low Noise, Auto-Zero Rail-to-Rail Precision Op Amp FN6957 Rev.6.03 Oct 27, 2022 The ISL28134 is a single, auto-zeroing operational amplifier optimized for single and dual supply operation from 2.25V to 6.0V and ±1.125V and ±3.0V. The ISL28134 uses auto-zeroing circuitry to provide very low input offset voltage, drift and a reduction of the 1/f noise corner below 0.1Hz. The ISL28134 achieves ultra low offset voltage, offset temperature drift, wide gain bandwidth and rail-to-rail input/output swing while minimizing power consumption. The ISL28134 is ideal for amplifying the sensor signals of analog front-ends that include pressure, temperature, medical, strain gauge and inertial sensors down to the µV levels.
