ISL28133 - RRIO Operational Amplifier

Datasheet Summary

Description

PKG.

DWG.

Features

Low input offset voltage.
. . 8µV, Max.
Low offset TC.
. . . . 0.075µV/°C, Max.
Input bias current.
. 300pA, Max.
Quiescent current.
. .18µA, Typ.
Wide supply range.
1.8V to 5.5V.
Low noise (0.01Hz to 10Hz).
. .1.1µ.

Renesas

📥 Download Datasheet

Datasheet Details

Part number	ISL28133
Manufacturer	Renesas
File Size	2.28 MB
Description	RRIO Operational Amplifier
Datasheet	ISL28133 Datasheet

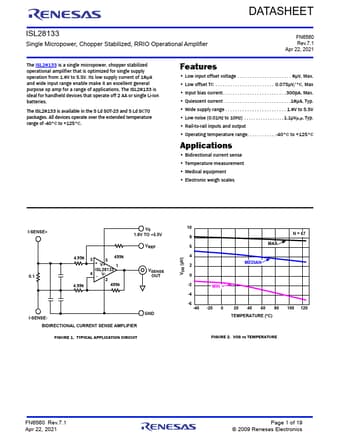

Additional preview pages of the ISL28133 datasheet.

📁 Similar Datasheet

ISL28146 - (ISL28146 / ISL28246) Single and Dual Rail-to-Rail Input-Output (RRIO) Op Amps (Intersil Corporation)
ISL28195 - (ISL28194 / ISL28195) Rail-to-Rail Input/Output (RRIO) Op Amps (Intersil Corporation)
ISL28246 - Op Amps (Intersil Corporation)
ISL28256 - Low Input Bias Current Op Amps (Intersil Corporation)
ISL28266 - Op Amps (Intersil Corporation)
ISL28274 - Operational Amplifier (Intersil Corporation)
ISL28278 - (ISL28278 / ISL28478) Dual Micropower Single Supply Rail-to-Rail Input and Output (RRIO) Precision Op-Amp (Intersil Corporation)
ISL28448 - Op Amps (Intersil Corporation)
ISL28474 - Operational Amplifier (Intersil Corporation)
ISL28478 - (ISL28278 / ISL28478) Dual Micropower Single Supply Rail-to-Rail Input and Output (RRIO) Precision Op-Amp (Intersil Corporation)

Other Datasheets by Renesas

ISL28133A - Single Micro-Power High-Precision RRIO CMOS Operational Amplifier
ISL28130 - RRIO Operational Amplifiers
ISL28134 - Zero Drift Rail-to-Rail Precision Op Amp
ISL28136 - Single Precision Rail-to-Rail Input-Output (RRIO) Op Amp
ISL28138 - Rail-to-Rail Input-Output (RRIO) Op Amps
ISL28107 - Low Noise Operational Amplifiers
ISL28108 - Low Power Operational Amplifier
ISL28110 - Precision Low Noise JFET Operational Amplifiers

Full PDF Text Transcription

Click to expand full text

DATASHEET ISL28133 Single Micropower, Chopper Stabilized, RRIO Operational Amplifier FN6560 Rev.7.1 Apr 22, 2021 The ISL28133 is a single micropower, chopper stabilized operational amplifier that is optimized for single supply operation from 1.8V to 5.5V. Its low supply current of 18µA and wide input range enable make it an excellent general purpose op amp for a range of applications. The ISL28133 is ideal for handheld devices that operate off 2 AA or single Li-ion batteries. The ISL28133 is available in the 5 Ld SOT-23 and 5 Ld SC70 packages. All devices operate over the extended temperature range of -40°C to +125°C. Features • Low input offset voltage . . . . . . . . . . . . . . . . . . . . . . 8µV, Max. • Low offset TC . . . . . . . . . . . . . . . . . . . . . . . . 0.
