ISL3243E, ISL3241E Datasheet - Renesas

ISL3243E RS-232 Transmitters/Receivers

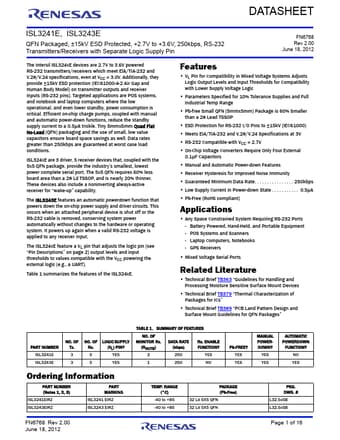

DATASHEET ISL3241E, ISL3243E QFN Packaged, ±15kV ESD Protected, +2.7V to +3.6V, 250kbps, RS-232 Transmitters/Receivers with Separate Logic Supply Pin FN6768 Rev 2.00 June 18, 2012 The Intersil ISL324xE devices are 2.7V to 3.6V powered RS-232 transmitters/receivers which meet ElA/TIA-232 and V.28/V.24 specifications, even at VCC = 3.0V. Additionally, they provide ±15kV ESD protection (IEC61000-4-2 Air Gap and Human Body Model) on transmitter outputs and receiver inputs (RS-232 pins). Targeted .

ISL3241E-Renesas.pdf

This datasheet PDF includes multiple part numbers: ISL3243E, ISL3241E. Please refer to the document for exact specifications by model.
ISL3243E Datasheet Preview Page 2 ISL3243E Datasheet Preview Page 3

Datasheet Details

Part number:

ISL3243E, ISL3241E

Manufacturer:

Renesas ↗

File Size:

951.23 KB

Description:

Rs-232 transmitters/receivers.

Note:

This datasheet PDF includes multiple part numbers: ISL3243E, ISL3241E.
Please refer to the document for exact specifications by model.
