ISL32601E, ISL32600E Datasheet - Renesas

ISL32601E Slew Rate Limited RS-485/RS-422 Transceivers

(RoHS Compliant) PKG. DWG. # TEMP. RANGE ISL32600EFBZ 32600EFBZ Tube 14 Ld SOIC M14.15 -40 to +125°C ISL32600EFBZ-T Reel, 2.5k ISL32600EFBZ-T7A Reel, 250 ISL32600EFUZ 32600 Tube 10 Ld MSOP M10.118 ISL32600EFUZ-T Reel, 2.5k ISL32600EFUZ-T7A Reel, 250 ISL32601EFBZ 32601 EFBZ Tu.
DATASHEET ISL32600E, ISL32601E, ISL32602E, ISL32603E 1.8V to 3.3V, Micro-Power, ±15kV ESD, +125 °C, Slew Rate Limited RS-485/RS-422 Transceivers The ISL32600E, ISL32601E, ISL32602E, and ISL32603E are ±15kV IEC61000 ESD protected, micro-power, wide supply range transceivers for differential communication. The ISL32600E and ISL32601E operate with VCC ≥ 2.7V and have maximum supply currents as low as 100µA with both the transmitter (Tx) and receiver (Rx) enabled. The ISL32602E and ISL32603E opera.

ISL32600E-Renesas.pdf

This datasheet PDF includes multiple part numbers: ISL32601E, ISL32600E. Please refer to the document for exact specifications by model.

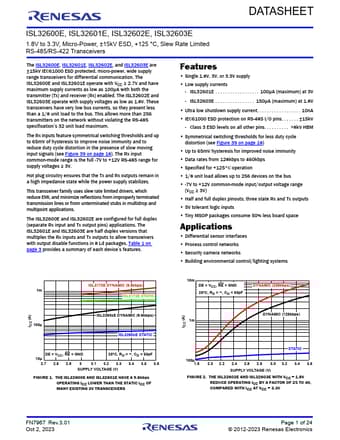

ISL32601E Datasheet Preview Page 2 ISL32601E Datasheet Preview Page 3

Datasheet Details

Part number:

ISL32601E, ISL32600E

Manufacturer:

Renesas ↗

File Size:

1.68 MB

Description:

Slew rate limited rs-485/rs-422 transceivers.

Note:

This datasheet PDF includes multiple part numbers: ISL32601E, ISL32600E.
Please refer to the document for exact specifications by model.
