ISL6402 Step-Down PWM and Single Linear Controller

DATASHEET ISL6402 300kHz Dual, 180° Out-of-Phase, Step-Down PWM and Single Linear Controller FN9123 Rev 3.00 Nov 8, 2004 The ISL6402 is a high-performance, triple-output controller optimized for converting wall adapter, battery or network intermediate bus DC input supplies into the system supply voltages required for a wide variety of applications. Each output is adjustable down to 0.8V. The two PWMs are synchronized 180o out of phase reducing the RMS input current and ripple voltage. The ISL.

ISL6402 Features

* An adjustable overcurrent protection circuit monitors the output current by sensing the voltage drop across the lower MOSFET. Hiccup mode overcurrent operation protects the DC-DC components from damage during output overload/short circuit conditions. Each PWM has an independent logic-level shutdown

ISL6402 Datasheet (822.59 KB)

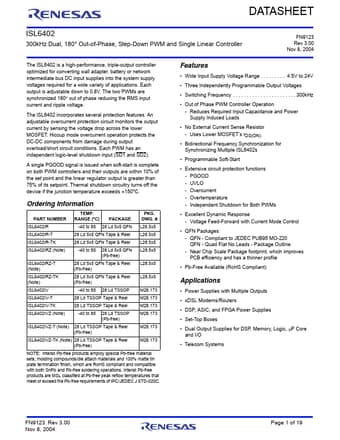

ISL6402 Datasheet Preview — Preview of ISL6402 PDF

Datasheet Details

Part number:

ISL6402

Manufacturer:

Renesas ↗

File Size:

822.59 KB

Description:

Step-down pwm and single linear controller.
