ISL6402A

Step-Down PWM and Single Linear Controller

ISL6402A Features

* An adjustable overcurrent protection circuit monitors the output current by sensing the voltage drop across the lower MOSFET. Hiccup mode overcurrent operation protects the DC-DC components from damage during output overload/short circuit conditions. Each PWM has an independent logic-level shutdown

ISL6402A Datasheet (782.99 KB)

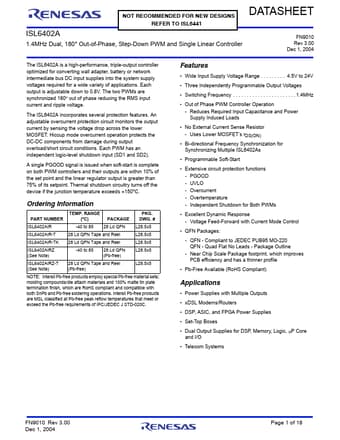

Preview of ISL6402A PDF

Datasheet Details

Part number:

ISL6402A

Manufacturer:

Renesas ↗

File Size:

782.99 KB

Description:

Step-down pwm and single linear controller.
ISL6402A NOT RECOMMENDED FOR NEW DESIGNS REFER TO ISL6441 1.4MHz Dual, 180° Out-of-Phase, Step-Down PWM and Single Linear Controller DATASHEET FN90.
