ISL78235R5668 Datasheet - Renesas

ISL78235R5668 Automotive 5A Synchronous Buck Regulator

ISL78235R5668 Automotive 5A Synchronous Buck Regulator The ISL78235R5668 is a highly efficient, monolithic, synchronous step-down DC/DC converter that can deliver 5A continuous and up to 8A pulsed output current from a 2.7V to 5.5V input supply. The device uses peak current mode control architecture to achieve very low duty cycle operation at high frequency with fast transient response and excellent loop stability. The ISL78235R5668 integrates a low ON-resistance P-channel (35mΩ, typical) high-s.

ISL78235R5668-Renesas.pdf

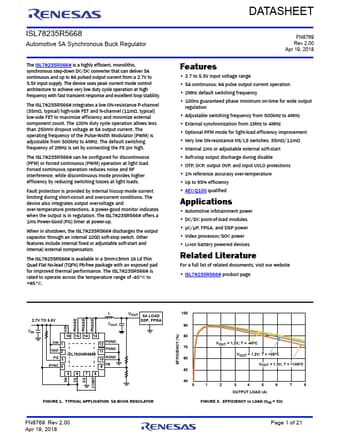

Preview of ISL78235R5668 PDF
ISL78235R5668 Datasheet Preview Page 2 ISL78235R5668 Datasheet Preview Page 3

Datasheet Details

Part number:

ISL78235R5668

Manufacturer:

Renesas ↗

File Size:

2.24 MB

Description:

Automotive 5a synchronous buck regulator.
