ISL9211 Datasheet - Renesas

ISL9211 Charging System Safety Circuit

ISL9211 Charging System Safety Circuit The ISL9211 is an integrated circuit (IC) optimized to provide a redundant safety protection to a Li-ion battery charging system. The IC monitors the input voltage, the battery voltage, and the charge current. When any of the three parameters exceeds its limit, the IC turns off an internal N-channel MOSFET to remove the power from the charging system to the battery. In addition to the above protected parameters, the IC also monitors its own internal temper.

ISL9211 Features

* 24V Max Input Voltage

* Supports Up To 1.5A Input Current

* Fully Integrated Protection Circuit for Three Protected Variables

* High Accuracy Protection Thresholds

* User Programmable Overcurrent Protection Threshold

* Responds To Input Overvoltage i

ISL9211 Datasheet (479.38 KB)

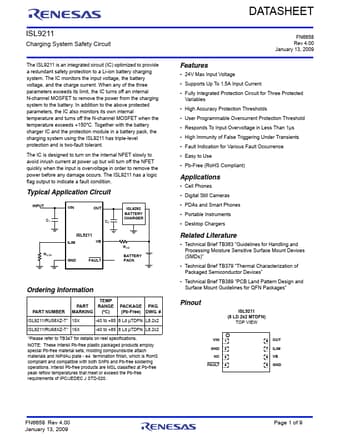

Preview of ISL9211 PDF
ISL9211 Datasheet Preview Page 2 ISL9211 Datasheet Preview Page 3

Datasheet Details

Part number:

ISL9211

Manufacturer:

Renesas ↗

File Size:

479.38 KB

Description:

Charging system safety circuit.
