ISL97651 Datasheet - Renesas

ISL97651, 4-Channel Integrated LCD Supply

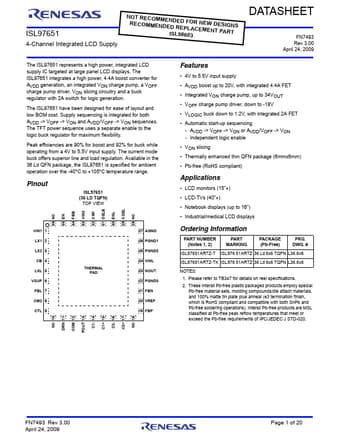

ISL97651 4-Channel Integrated LCD Supply NROETCROEMCMOEMNMDEENIDSDLRE9ED8P6F0LO3ARCENMEWENDTEPSAIGRTNS DATASHEET FN7493 Rev 3.00 April 24, 2009 The.

datasheet Preview Page 1 from Datasheet4u.com

ISL97651-Renesas.pdf

ISL97651 Datasheet Preview — Preview of ISL97651 PDF

Datasheet Details

Part number:

ISL97651

Manufacturer:

Renesas ↗

File Size:

540.62 KB

Description:

4-Channel Integrated LCD Supply

Features

* 4V to 5.5V input supply
* AVDD boost up to 20V, with integrated 4.4A FET
* Integrated VON charge pump, up to 34VOUT
* VOFF charge pump driver, down to -18V
* VLOGIC buck down to 1.2V, with integrated 2A FET
* Automatic start-up sequencing - AVDD -> V

Applications

* LCD monitors (15”+)
* LCD-TVs (40”+)
* Notebook displays (up to 16”)
* Industrial/medical LCD displays Ordering Information PART NUMBER (Notes 1, 2) PART MARKING PACKAGE (Pb-Free) PKG. DWG. # ISL97651ARTZ-T ISL976 51ARTZ 36 Ld 6x6 TQFN L36.6x6 ISL97651ARTZ-TK
