ISL97653A Datasheet - Renesas

ISL97653A, 5-Channel Integrated LCD Supply

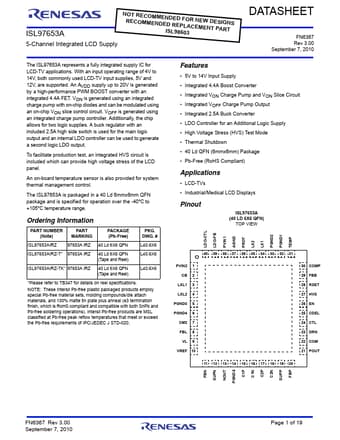

ISL97653A NROETCROEMCMOEMNMDEENIDSDLRE9ED8P6F0LO3ARCENMEWENDTEPSAIGRTNS 5-Channel Integrated LCD Supply DATASHEET FN6367 Rev 3.00 September 7, 2010.

datasheet Preview Page 1 from Datasheet4u.com

ISL97653A-Renesas.pdf

ISL97653A Datasheet Preview — Preview of ISL97653A PDF

Datasheet Details

Part number:

ISL97653A

Manufacturer:

Renesas ↗

File Size:

732.77 KB

Description:

5-Channel Integrated LCD Supply

Features

* 5V to 14V Input Supply
* Integrated 4.4A Boost Converter
* Integrated VON Charge Pump and VON Slice Circuit
* Integrated VOFF Charge Pump Output
* Integrated 2.5A Buck Converter
* LDO Controller for an Additional Logic Supply
* High Voltage S

Applications

* With an input operating range of 4V to 14V, both commonly used LCD-TV input supplies, 5V and 12V, are supported. An AVDD supply up to 20V is generated by a high-performance PWM BOOST converter with an integrated 4.4A FET. VON is generated using an integrated charge pump with on-chip diodes and can
