ISL97631

White LED Boost Regulator

ISL97631 Features

* efficiencies up to 85%. It operates at 1.35MHz switching frequency and operates from an input voltage of between 2.7V and 5.5V. The maximum output voltage of 27V enables the ISL97631 to drive up to 6 LEDs in series. It is also possible to use the ISL97631 to drive LEDs in series/parallel combination

ISL97631 Datasheet (335.52 KB)

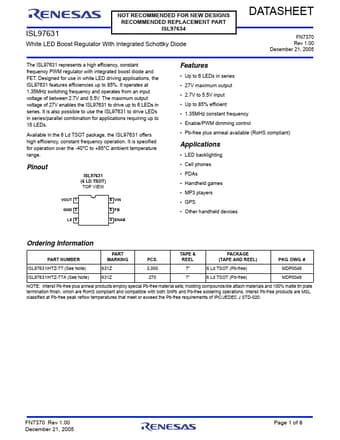

Preview of ISL97631 PDF

Datasheet Details

Part number:

ISL97631

Manufacturer:

Renesas ↗

File Size:

335.52 KB

Description:

White led boost regulator.
ISL97631 NOT RECOMMENDED FOR NEW DESIGNS RECOMMENDED REPLACEMENT PART ISL97634 White LED Boost Regulator With Integrated Schottky Diode DATASHEET F.
