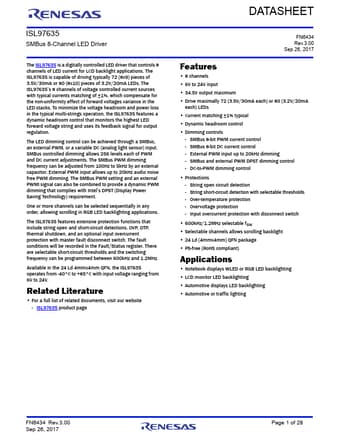

Preview of ISL97635 PDF
ISL97635 Datasheet Preview Page 2 ISL97635 Datasheet Preview Page 3

Datasheet Details

Part number:

ISL97635

Manufacturer:

Renesas ↗

File Size:

1.00 MB

Description:

Smbus 8-channel led driver.

ISL97635, SMBus 8-Channel LED Driver

ISL97635 SMBus 8-Channel LED Driver The ISL97635 is a digitally controlled LED driver that controls 8 channels of LED current for LCD backlight applications.

The ISL97635 is capable of driving typically 72 (8x9) pieces of 3.5V/30mA or 80 (8x10) pieces of 3.2V/20mA LEDs.

The ISL97635’s 8 channels of voltage controlled current sources with typical currents matching of ±1%, which compensate for the non-uniformity effect of forward voltages variance in the LED stacks.

To minimize the voltage headroo

ISL97635 Features

* a dynamic headroom control that monitors the highest LED forward voltage string and uses its feedback signal for output regulation. The LED dimming control can be achieved through a SMBus, an external PWM, or a variable DC (analog light sensor) input. SMBus controlled dimming allows 256 levels each
