ISL97632 LED Driver

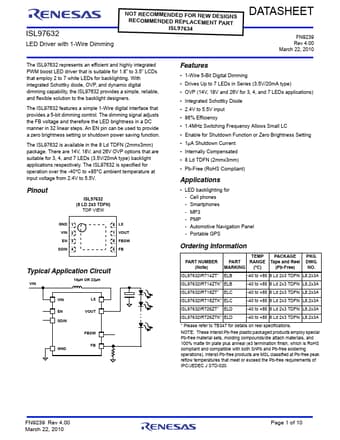

ISL97632 LED Driver with 1-Wire Dimming NROETCROEMCMOEMNMDEENDDREEDPFLOARCENMEWENDTEPSAIGRNTS ISL97634 DATASHEET FN9239 Rev 4.00 March 22, 2010 The ISL97632 represents an efficient and highly integrated PWM boost LED driver that is suitable for 1.8” to 3.5” LCDs that employ 2 to 7 white LEDs for backlighting. With integrated Schottky diode, OVP, and dynamic digital dimming capability, the ISL97632 provides a simple, reliable, and flexible solution to the backlight designers. The ISL97632 feat.

ISL97632 Features

* a simple 1-Wire digital interface that provides a 5-bit dimming control. The dimming signal adjusts the FB voltage and therefore the LED brightness in a DC manner in 32 linear steps. An EN pin can be used to provide a zero brightness setting or shutdown power saving function. The ISL97632 is availab
