ISL97636A, 6-Channel LED Driver

ISL97636A 6-Channel LED Driver The ISL97636A is an integrated power LED driver that controls 6 channels of LED current for LCD backlight applications.

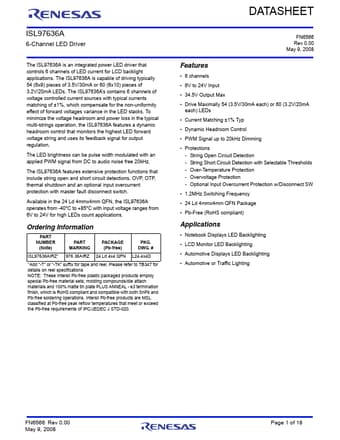

datasheet Preview Page 1 from Datasheet4u.com

ISL97636A-Renesas.pdf

ISL97636A Datasheet Preview — Preview of ISL97636A PDF

Datasheet Details

Part number:

ISL97636A

Manufacturer:

Renesas ↗

File Size:

819.48 KB

Description:

6-Channel LED Driver

Features

* a dynamic headroom control that monitors the highest LED forward voltage string and uses its feedback signal for output regulation. The LED brightness can be pulse width modulated with an applied PWM signal from DC to audio noise free 20kHz. The ISL97636A features extensive protection functions that

Applications

* The ISL97636A is capable of driving typically 54 (6x9) pieces of 3.5V/30mA or 60 (6x10) pieces of 3.2V/20mA LEDs. The ISL97636A’s contains 6 channels of voltage controlled current sources with typical currents matching of ±1%, which compensate for the non-uniformity effect of forward voltages varia
