ISLA110P50, 500MSPS A/D Converter

ISLA110P50 10-Bit, 500MSPS A/D Converter The ISLA110P50 is a low-power, high-performance, 500MSPS analog-to-digital converter designed with Renesas’ p.

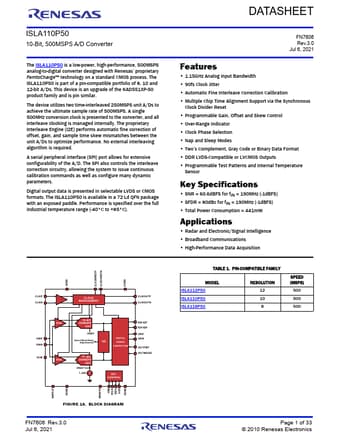

datasheet Preview Page 1 from Datasheet4u.com

ISLA110P50-Renesas.pdf

ISLA110P50 Datasheet Preview — Preview of ISLA110P50 PDF

Datasheet Details

Part number:

ISLA110P50

Manufacturer:

Renesas ↗

File Size:

1.73 MB

Description:

500MSPS A/D Converter

Features

* 1.15GHz Analog Input Bandwidth
* 90fs Clock Jitter
* Automatic Fine Interleave Correction Calibration
* Multiple Chip Time Alignment Support via the Synchronous Clock Divider Reset
* Programmable Gain, Offset and Skew Control
* Over-Range Indicator

Applications

* Radar and Electronic/Signal Intelligence
* Broadband Communications
* High-Performance Data Acquisition TABLE 1. PIN-COMPATIBLE FAMILY MODEL ISLA112P50 ISLA110P50 ISLA118P50 RESOLUTION 12 10 8 SPEED (MSPS) 500 500 500 NAPSLP AGND RESETN CSB SCLK SDIO SDO OGND FIGURE 1
