- 72 Ld QFN, LVDS Mode PIN NUMBER 1, 2, 17 6, 13, 19, 20, 21, 70, 71, 72 5, 7, 12, 14 27, 32, 62 26, 45, 61, 65 3 4 8, 9 10, 11 15 16 18 22, 23 24, 25 28 29 30 31 33 34 35 36 37 38 39 40 41 42 43 44 46 47, 48 49 50 51 52 53 54 55 56 57 LVDS PIN NAME DNC AVDD LVDS PIN FUNCTION Do Not Connect 1.8V

14-Bit, 250MSPS/200MSPS/130MSPS ADC ISLA214P The ISLA214P is a series of low power, high performance 14-bit analog-to-digital converters.

Designed with Intersil’s proprietary FemtoCharge™ technology on a standard CMOS process, the series supports sampling rates of up to 250MSPS.

The ISLA214P is part of a pin-compatible family of 12 to 16-bit A/Ds with maximum sample rates ranging from 130MSPS to 500MSPS.

A serial peripheral interface (SPI) port allows for extensive configurability, as well as f

ISLA214P Features

* Single supply 1.8V operation

* Clock duty cycle stabilizer

* 75fs clock jitter

* 700MHz bandwidth

* Programmable built-in test patterns

* Multi-ADC support - SPI programmable fine gain and offset control - Support for multiple ADC synchronization - O

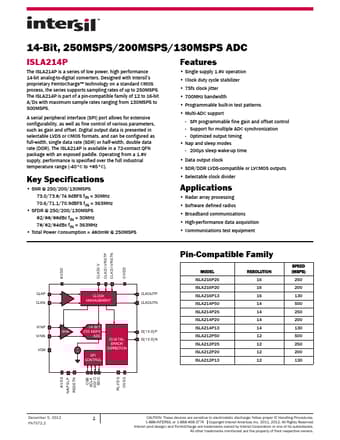

ISLA214P-Intersil.pdf
