ISLA214P50 Datasheet - Renesas

ISLA214P50 - 500MSPS ADC

- 72 Ld QFN, LVDS Mode .

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

5 Pin Configuration - CMOS MODE .

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

ISLA214P50 14-Bit, 500MSPS ADC The ISLA214P50 is a 14-bit, 500MSPS analog-to-digital converter designed with the Renesas proprietary FemtoChargeā„¢ technology on a standard CMOS process.

The ISLA214P50 is part of a pin-compatible portfolio of 12 to 16-bit A/Ds with maximum sample rates ranging from 130MSPS to 500MSPS.

The device utilizes two time-interleaved 250MSPS unit ADCs to achieve the ultimate sample rate of 500MSPS.

A single 500MHz conversion clock is presented to the converter, and all int

ISLA214P50 Features

* Automatic fine interleave correction calibration

* Single supply 1.8V operation

* Clock duty cycle stabilizer

* 75fs clock jitter

* 700MHz bandwidth

* Programmable built-in test patterns

* Multi-ADC support - SPI programmable fine gain and of

ISLA214P50-Renesas.pdf

Preview of ISLA214P50 PDF

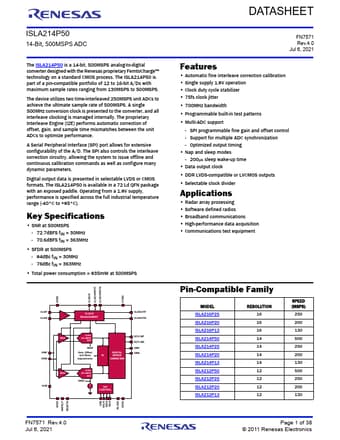

ISLA214P50 Datasheet Preview Page 2 ISLA214P50 Datasheet Preview Page 3
