ISLA212P 250MSPS/200MSPS/130MSPS ADC

- 72 Ld QFN, LVDS Mode PIN NUMBER 1, 2, 17, 57, 58, 59, 60 6, 13, 19, 20, 21, 70, 71, 72 5, 7, 12, 14 27, 32, 62 26, 45, 61, 65 3 4 8, 9 10, 11 15 16 18 22, 23 24, 25 28 29 30 31 33 34 35 36 37 38 39 40 41 42 43 44 46 47, 48 49 50 51 52 53 54 55 56 63, 64 LVDS PIN NAME DNC AVDD LVDS PIN FUNCTION.

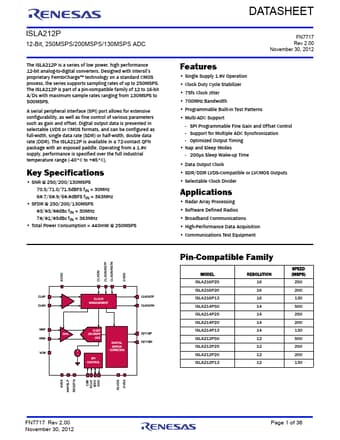

ISLA212P 12-Bit, 250MSPS/200MSPS/130MSPS ADC The ISLA212P is a series of low power, high performance 12-bit analog-to-digital converters. Designed with Intersil’s proprietary FemtoCharge™ technology on a standard CMOS process, the series supports sampling rates of up to 250MSPS. The ISLA212P is part of a pin-compatible family of 12 to 16-bit A/Ds with maximum sample rates ranging from 130MSPS to 500MSPS. A serial peripheral interface (SPI) port allows for extensive configurability, as well as fi.

ISLA212P Features

* Single Supply 1.8V Operation

* Clock Duty Cycle Stabilizer

* 75fs Clock Jitter

* 700MHz Bandwidth

* Programmable Built-in Test Patterns

* Multi-ADC Support - SPI Programmable Fine Gain and Offset Control - Support for Multiple ADC Synchronization - O
