ISLA112P25M Datasheet - Intersil

ISLA112P25M Low Power 12-Bit ADC

PIN NUMBER LVDS [LVCMOS] NAME LVDS [LVCMOS] FUNCTION SDR MODE 1, 6, 12, 19, 24, 71 AVDD 1.8V Analog Supply 2, 3, 4, 5, 13, 14, 17, 18, 28, 29, 30, 31 DNC Do Not Connect 7, 8, 11, 72 AVSS Analog Ground 9, 10 VINN, VINP Analog Input Negative, Positive 15 VCM Common Mode Output 16 .

ISLA112P25M Low Power 12-Bit, 250MSPS ADC The ISLA112P25MREP is a low-power 12-bit, 250MSPS analog-to-digital converter. Designed with Intersil’s proprietary FemtoCharge™ technology on a standard CMOS process. A serial peripheral interface (SPI) port allows for extensive configurability, as well as fine control of various parameters such as gain and offset. Digital output data is presented in selectable LVDS or CMOS formats. The ISLA112P25MREP is available in a 72 Ld QFN package with an exposed .

ISLA112P25M Features

* Programmable Gain, Offset and Skew Control

* 1.3GHz Analog Input Bandwidth

* 60fs Clock Jitter

* Over-Range Indicator

* Selectable Clock Divider: 1, 2 or 4

* Clock Phase Selection

* Nap and Sleep Modes

* Two’s Complement, Gray Code

ISLA112P25M Datasheet (882.37 KB)

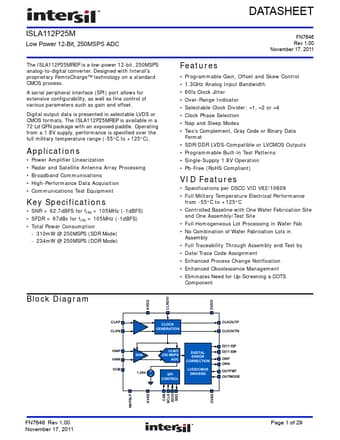

ISLA112P25M Datasheet Preview — Preview of ISLA112P25M PDF

Datasheet Details

Part number:

ISLA112P25M

Manufacturer:

Intersil

File Size:

882.37 KB

Description:

Low power 12-bit adc.
