ISLA118P50 8-Bit, 500MSPS A/D Converter The ISLA118P50 is a low-power, high-performance, 500MSPS analog-to-digital converter designed with Renesas’ proprietary FemtoCharge™ technology on a standard CMOS process.

The ISLA118P50 is part of a pin-compatible portfolio of 8, 10 and 12-bit A/Ds.

This device an upgrade of the KAD551XP-50 product family and is pin similar.

The device utilizes two time-interleaved 250MSPS unit A/Ds to achieve the ultimate sample rate of 500MSPS.

A single 500MHz conversio

ISLA118P50 Features

* 1.15GHz Analog Input Bandwidth

* 90fs Clock Jitter

* Automatic Fine Interleave Correction Calibration

* Multiple Chip Time Alignment Support via the Synchronous Clock Divider Reset

* Programmable Gain, Offset and Skew Control

* Over-Range Indicator

ISLA118P50-Renesas.pdf

Preview of ISLA118P50 PDF

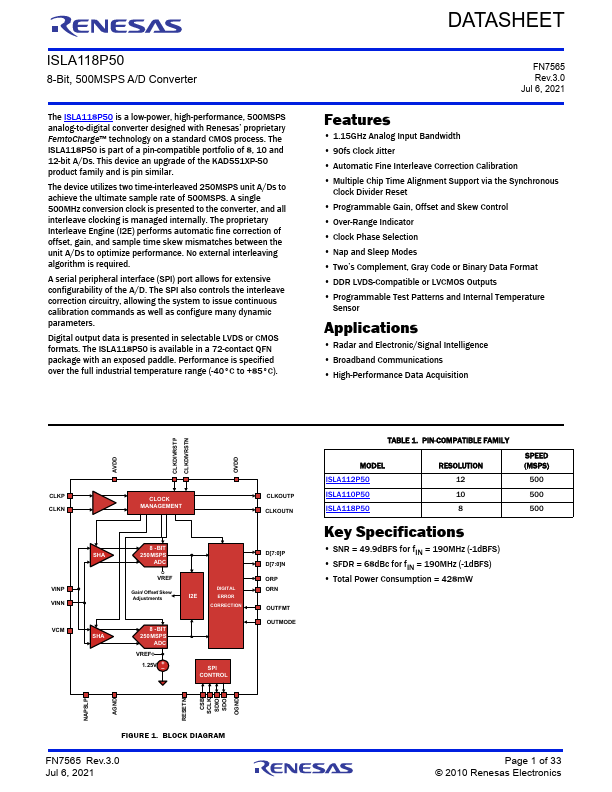

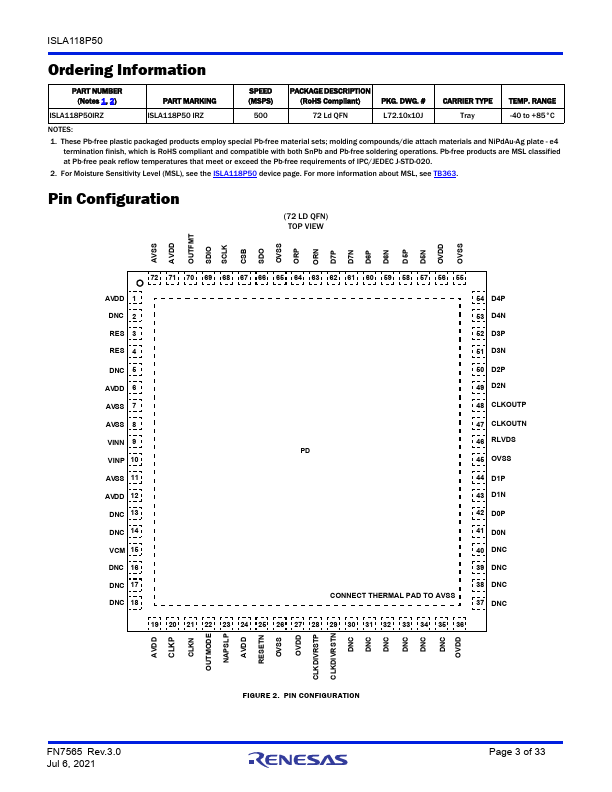

ISLA118P50 Datasheet Preview Page 2 ISLA118P50 Datasheet Preview Page 3
