ISLA214S50 - High Speed Serial Output ADC

Renesas

📥 Download Datasheet

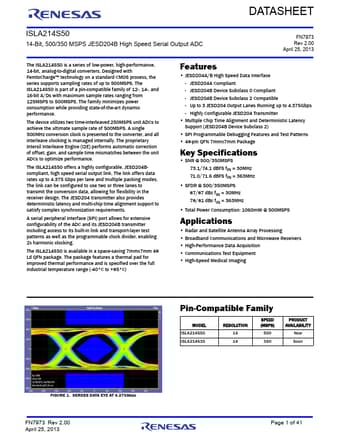

ISLA214S50 Datasheet Preview — Preview of ISLA214S50 PDF

Datasheet Details

Part number: ISLA214S50
Manufacturer: Renesas ↗
File Size: 2.15 MB
Datasheet: ISLA214S50-Renesas.pdf
Description: High Speed Serial Output ADC

ISLA214S50 Product details

Description

PIN NUMBER 2, 11, 14, 15, 46 12, 20, 47, 48 3, 4, 9, 10 7, 8 5, 6 1 44 16, 17 45 13 26, 29, 32, 35, 37, 38 25, 36, 39 22, 24 21, 23 18, 19 27, 28 30, 31 33, 34 40 41 42 43 PAD NAME AVDD DNC AVSS VINP VINN VCM CLKDIV CLKP, CLKN NAPSLP RESETN OVSS OVDD OVDD (PLL) OVSS (PLL) SYNCP, SYNCN LANE0P, LANE0N LANE1P, LANE1N LANE2P, LANE2N SDO CSB SCLK SDIO AVSS

Features

a thermal pad for improved thermal performance and is specified over the full industrial temperature range (-40°C to +85°C) Features.
JESD204A/B High Speed Data Interface - JESD204A Compliant - JESD204B Device Subclass 0 Compliant - JESD204B Device Subclass 2 Compatible - Up to 3 JESD204 Output Lanes Running up to 4.375Gbps - Highly Configurable JESD204 Transmitter.
Multiple Chip Time Alignment and Deterministic Latency Support (JESD204B Device Subclass 2).
SPI Progra.
