ISLA222P - Dual 12-Bit ADC

Renesas

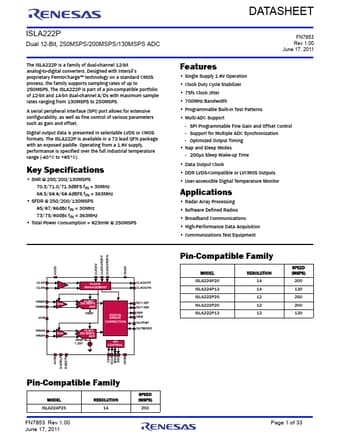

ISLA222P Datasheet Preview — Preview of ISLA222P PDF

Datasheet Details

Part number	ISLA222P
Manufacturer	Renesas ↗
File Size	1.64 MB
Description	Dual 12-Bit ADC
Datasheet	ISLA222P-Renesas.pdf

ISLA222P Product details

Description

- 72 Ld QFN, LVDS Mode PIN NUMBER 1, 2, 17, 57, 58, 59, 60 9, 10, 19, 20, 21, 70, 71, 72 5, 8, 11, 14 27, 32, 62 26, 45, 61, 65 3 4 6, 7 12, 13 LVDS PIN NAME DNC AVDD AVSS OVDD OVSS NAPSLP VCM VINBP, VINBN VINAN, VINAP LVDS PIN FUNCTION Do Not Connect 1.8V Analog Supply Analog Ground 1.8V Output Supply Output Ground Tri-Level Power Control (Nap, Sleep modes) Common Mode Output Channel B Analog Input Positive, Negative Channel A Analog Input Negative, Positive FN7853 Rev 1.00 June 17, 2011

Features

Single Supply 1.8V Operation.
Clock Duty Cycle Stabilizer.
75fs Clock Jitter.
700MHz Bandwidth.
Programmable Built-in Test Patterns.
Multi-ADC Support - SPI Programmable Fine Gain and Offset Control - Support for Multiple ADC Synchronization - Optimized Output Timing.
Nap and Sleep Modes - 200µs Sleep Wake-up Time.
Data Output Clock.
DDR LVDS-Compatible or LVCMOS Outputs.
User-accessible Digital Temperatur.
