ISLA224P - Dual 14-Bit ADC

Renesas

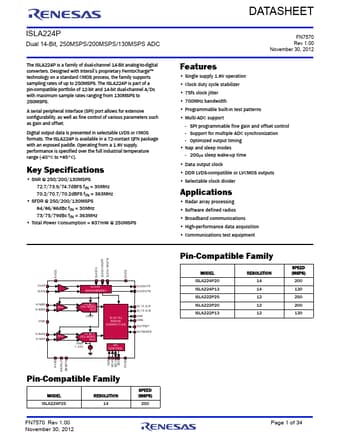

ISLA224P Datasheet Preview — Preview of ISLA224P PDF

Datasheet Details

Part number	ISLA224P
Manufacturer	Renesas ↗
File Size	1.80 MB
Description	Dual 14-Bit ADC
Datasheet	ISLA224P-Renesas.pdf

ISLA224P Product details

Description

- 72 Ld QFN, LVDS Mode PIN NUMBER 1, 2, 17 9, 10, 19, 20, 21, 70, 71, 72 5, 8, 11, 14 27, 32, 62 26, 45, 61, 65 3 4 6, 7 LVDS PIN NAME DNC AVDD AVSS OVDD OVSS NAPSLP VCM VINBP, VINBN LVDS PIN FUNCTION Do Not Connect 1.8V Analog Supply Analog Ground 1.8V Output Supply Output Ground Tri-Level Power Control (Nap, Sleep modes) Common Mode Output Channel B Analog Input Positive, Negative FN7570 Rev 1.00 November 30, 2012 Page 2 of 34 ISLA224P Pin Descriptions - 72 Ld QFN, LVDS Mode (Continued

Features

Single supply 1.8V operation.
Clock duty cycle stabilizer.
75fs clock jitter.
700MHz bandwidth.
Programmable built-in test patterns.
Multi-ADC support - SPI programmable fine gain and offset control - Support for multiple ADC synchronization - Optimized output timing.
Nap and sleep modes - 200µs sleep wake-up time.
Data output clock.
DDR LVDS-compatible or LVCMOS outputs.
Selectable clock divider Applicati.
