PS2501L-4, PS2501-1, NPN silicon phototransistor

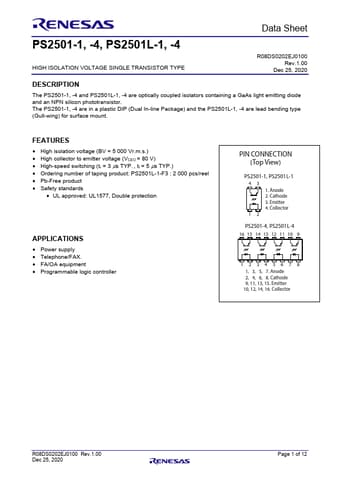

Data Sheet PS2501-1, -4, PS2501L-1, -4 HIGH ISOLATION VOLTAGE SINGLE TRANSISTOR TYPE R08DS0202EJ0100 Rev.1.00 Dec 25, 2020 .
The PS2501-1, -4 and PS2501L-1, -4 are optically coupled isolators containing a GaAs light emitting diode and an NPN silicon phototransistor.

datasheet Preview Page 1 from Datasheet4u.com

PS2501-1-Renesas.pdf

PS2501L-4 Datasheet Preview — This datasheet PDF includes multiple part numbers: PS2501L-4, PS2501-1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PS2501L-4, PS2501-1

Manufacturer:

Renesas ↗

File Size:

5.07 MB

Description:

NPN silicon phototransistor

Note:

This datasheet PDF includes multiple part numbers: PS2501L-4, PS2501-1.
Please refer to the document for exact specifications by model.

Features

* High isolation voltage (BV = 5 000 Vr. m. s. )
* High collector to emitter voltage (VCEO = 80 V)
* High-speed switching (tr = 3 s TYP. , tf = 5 s TYP. )
* Ordering number of taping product: PS2501L-1-F3 : 2 000 pcs/reel
* Pb-Free product
* Safety standards
* UL approved:

Applications

* Power supply
* Telephone/FAX.
* FA/OA equipment
* Programmable logic controller PIN CONNECTION (Top View) PS2501-1, PS2501L-1 43 1. Anode 2. Cathode 3. Emitter 4. Collector 12 PS2501-4, PS2501L-4 16 15 14 13 12 11 10 9 1 234 56 7 8 1, 3, 5, 7. Anode 2, 4, 6, 8. Cathode 9, 11, 13,
