PS9817A-1 - HIGH-SPEED PHOTOCOUPLER

Renesas

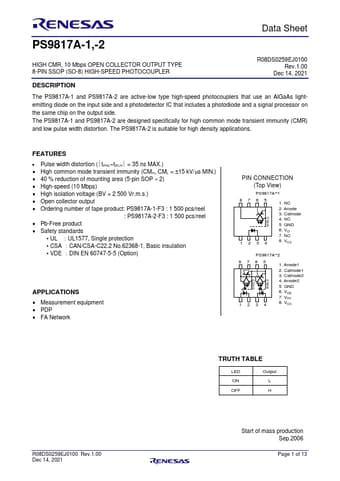

PS9817A-1 Datasheet Preview — Preview of PS9817A-1 PDF

Datasheet Details

Part number	PS9817A-1
Manufacturer	Renesas ↗
File Size	258.69 KB
Description	HIGH-SPEED PHOTOCOUPLER
Datasheet	PS9817A-1-Renesas.pdf

PS9817A-1 Product details

Description

The PS9817A-1 and PS9817A-2 are active-low type high-speed photocouplers that use an AlGaAs lightemitting diode on the input side and a photodetector IC that includes a photodiode and a signal processor on the same chip on the output side.

Features

Pulse width distortion (tPHL.
tPLH = 35 ns MAX. ).
High common mode transient immunity (CMH, CML = ±15 kV/µs MIN. ).
40 % reduction of mounting area (5-pin SOP × 2).
High-speed (10 Mbps).
High isolation voltage (BV = 2 500 Vr. m. s. ).
Open collector output.
Ordering number of tape product: PS9817A-1-F3 : 1 500 pcs/reel : PS9817A-2-F3 : 1 500 pcs/reel.
Pb-Free product.
Safety standards.
UL ：UL1577, Sin.
