PS9801 0.6A OUTPUT CURRENT HIGH CMR IGBT GATE DRIVE 8-PIN SSOP (SO-8) PHOTOCOUPLER

The PS9801 is an optically coupled isolator containing a GaAlAs LED on the input side and a photo diode, a signal processing circuit and a power output transistor on the output side on one chip. The PS9801 is designed specifically for high common mode transient immunity (CMR) and high switching spee.

PS9801 Features

* Peak output current (0.6 A MAX., 0.4 A MIN.)

* High speed switching (tPLH, tPHL = 0.65 μs MAX.)

* High common mode transient immunity (CMH, CML = ±25 kV/μs MIN.)

* Pb-Free product 8 7 PIN CONNECTION (Top View) 6 5 1. NC 2. Anode 3. Cathode 4. NC 5. VEE 6. VO 7. NC

PS9801-CaliforniaEasternLabs.pdf

Preview of PS9801 PDF

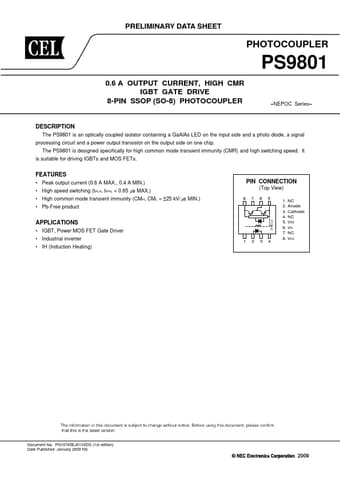

PS9801 Datasheet Preview Page 2 PS9801 Datasheet Preview Page 3
