PS9817A-2, PS9817A-1 Datasheet - Renesas

PS9817A-2 HIGH-SPEED PHOTOCOUPLER

The PS9817A-1 and PS9817A-2 are active-low type high-speed photocouplers that use an AlGaAs lightemitting diode on the input side and a photodetector IC that includes a photodiode and a signal processor on the same chip on the output side. The PS9817A-1 and PS9817A-2 are designed specifically for h.

PS9817A-2 Features

* Pulse width distortion (tPHL

* tPLH = 35 ns MAX.)

* High common mode transient immunity (CMH, CML = ±15 kV/µs MIN.)

* 40 % reduction of mounting area (5-pin SOP × 2)

* High-speed (10 Mbps)

* High isolation voltage (BV = 2 500 Vr.m.s.)

* Open

PS9817A-1-Renesas.pdf

This datasheet PDF includes multiple part numbers: PS9817A-2, PS9817A-1. Please refer to the document for exact specifications by model.

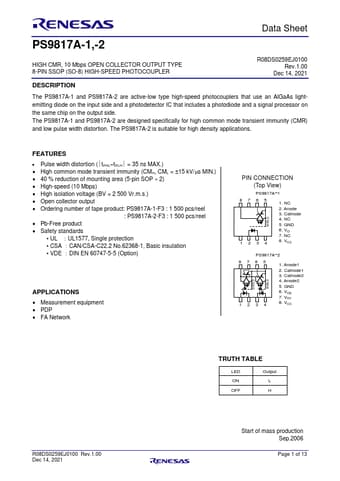

PS9817A-2 Datasheet Preview Page 2 PS9817A-2 Datasheet Preview Page 3

Datasheet Details

Part number:

PS9817A-2, PS9817A-1

Manufacturer:

Renesas ↗

File Size:

258.69 KB

Description:

High-speed photocoupler.

Note:

This datasheet PDF includes multiple part numbers: PS9817A-2, PS9817A-1.
Please refer to the document for exact specifications by model.
