PS9817-2 HIGH-SPEED PHOTOCOUPLER

NEC's PS9817-1 and PS9817-2 are active-low type high-speed photocouplers that use a GaAlAs light-emitting diode on the input side and a photodetector IC that includes a photodiode and a signal processor on the same chip on the output side. NEC's PS9817-1 and PS9817-2 are designed specifically for hig.

PS9817-2 Features

* PULSE WIDTH DISTORTION: |tPHL - tPLH| = 35 ns MAX. HIGH COMMON MODE TRANSIENT IMMUNITY: CMH, CML = ±15 kV/μs MIN. 40% REDUCTION OF MOUNTING AREA: 5-Pin SOP x 2 1 2 SHIELD PS9817-2 5 1. Anode1 2. Cathode1 3. Cathode2 4. Anode2 5. GND 6. VO2 7. VO1 8. VCC 3 4 SHIELD

PS9817-1_CaliforniaEasternLabs.pdf

This datasheet PDF includes multiple part numbers: PS9817-2, PS9817-1. Please refer to the document for exact specifications by model.

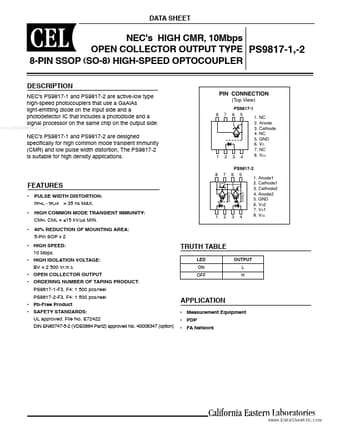

PS9817-2 Datasheet Preview Page 2 PS9817-2 Datasheet Preview Page 3

Datasheet Details

Part number:

PS9817-2, PS9817-1

Manufacturer:

California Eastern Labs

File Size:

631.19 KB

Description:

High-speed photocoupler.

Note:

This datasheet PDF includes multiple part numbers: PS9817-2, PS9817-1.
Please refer to the document for exact specifications by model.
