PS9817-1 Datasheet, Photocoupler, California Eastern Labs

PS9817-1 Features

• Photocoupler
• PULSE WIDTH DISTORTION: |tPHL - tPLH| = 35 ns MAX. HIGH COMMON MODE TRANSIENT IMMUNITY: CMH, CML = ±15 kV/μs MIN. 40% REDUCTION OF MOUNTING AREA: 5-Pin SOP

PDF File Details

Part number:

PS9817-1

Manufacturer:

California Eastern Labs

File Size:

631.19kb

Download:

📄 Datasheet

Description:

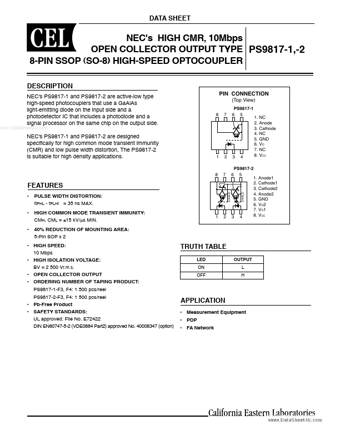

High-speed photocoupler. NEC's PS9817-1 and PS9817-2 are active-low type high-speed photocouplers that use a GaAlAs light-emitting diode on the input side and

PS9817-1 Application

• Applications PIN CONNECTION (Top View) PS9817-1 6 5 8 7 www.DataSheet4U.com 1 2 3 4 1. NC 2. Anode 3. Cathode 4. NC 5. GND 6. VO 7. NC 8. VCC
