BA7652AF Datasheet, Clamped-input, Rohm

BA7652AF Features

  • Clamped-input
  • 1) Small clamp capacitors can be used (ceramic, 3000pF (Min.), 0.01µF (FZ) (recommended)). 2) Low supply voltage operation possible. Supply voltage range is 3.7V to 7.7V. 3) S

PDF File Details

Part number:

BA7652AF

Manufacturer:

ROHM ↗

File Size:

65.08kb

Download:

📄 Datasheet

Description:

Video signal swither/ 1 x 3-channel with clamped-input. Pin No. 1 2 3 4 5 6 7 8 Name IN1 CTLa IN2 CTLb IN3 VCC OUT GND Input 1 Control input a Input 2 Control input b Input 3 Supply voltag

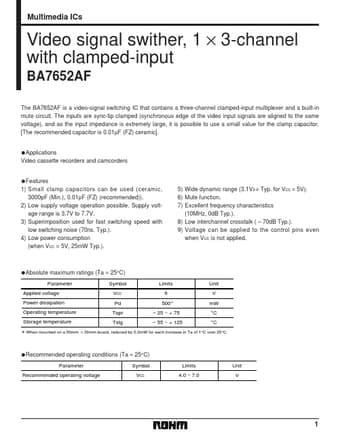

Datasheet Preview: BA7652AF 📥 Download PDF (65.08kb)
Page 2 of BA7652AF Page 3 of BA7652AF

BA7652AF Application

  • Applications
  • Video cassette recorders and camcorders Features
  • 1) Small clamp capacitors can be used (ceramic, 3000pF (Min.), 0.0
