BA7655AF - Dual Voltage-controlled Amplifier

Rohm

📥 Download Datasheet

BA7655AF Datasheet Preview — Preview of BA7655AF PDF

Datasheet Details

Part number: BA7655AF
Manufacturer: ROHM ↗
File Size: 51.55 KB
Datasheet: BA7655AF_Rohm.pdf
Description: Dual Voltage-controlled Amplifier

BA7655AF Product details

Description

Pin No. Input circuits 40k (Typ.) VCC VCC VCC 40k (Typ.) 3, 5 2.5V (Typ.) 1, 7 2, 6 3.0V (Typ.) 1m (Typ.) Absolute maximum ratings Parameter Power supply voltage Power dissipation Operating temperature Storage temperature Symbol VCCMax.Pd Topr Tstg Limits 8.0 500 (BA7655A : DIP8)∗1 350 (BA7655AF : SOP8)∗2 20 ~ + 80

Features

1) Wide bandwidth. 2) Wide dynamic range. 3) Low power cousumption. 4) Output muting possible. 5) Low voltage gain temperature drift.

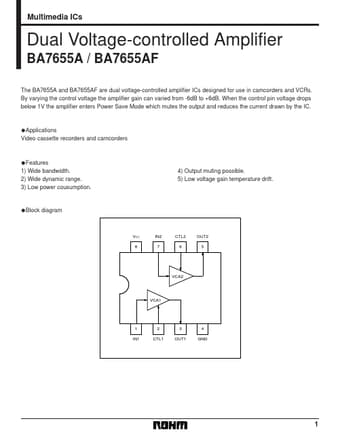

Block diagram VCC 8 IN2 7 CTL2 6 OUT2 5 VCA2 VCA1 1 IN1 2 CTL1 3 OUT1 4 GND 1 Multimedia ICs BA7655A / BA7655AF.
Pin.
