BA7654F - 2-input/ 1-output video signal switcher

Multimedia ICs 2-input, 1-output video signal switcher BA7654F The BA7654F is video signal switch consisting of two input pins (IN1 and IN2), one CTL pin (CTL), and one output pin (OUT).

The inputs are sync-tip clamped (synchronous edge of the video input signals are aligned to the same voltage), and as the input impedance is extremely large, it is possible to use a small value for the clamp capacitor (the recommended capacitor is 0.01µF (FZ) ceramic).

Applications VCRs, TVs, and othe

BA7654F Features

* 1) Small clamp capacitors can be used (ceramic, 3000pF (Min.), 0.01µF (FZ) (recommended)). 2) Low supply voltage operation possible supply voltage range is 3.7V to 7.7V. 3) Superimposition used for fast switching speed with low switching noise (70ns Typ.). 4) Low power consumption (when VC

BA7654F_Rohm.pdf

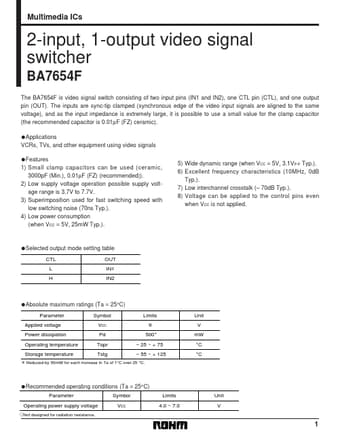

Preview of BA7654F PDF
BA7654F Datasheet Preview Page 2 BA7654F Datasheet Preview Page 3

Datasheet Details

Part number:

BA7654F

Manufacturer:

ROHM ↗

File Size:

80.50 KB

Description:

2-input/ 1-output video signal switcher.
