BD2200GUL - Load Switch ICs

Rohm

📥 Download Datasheet

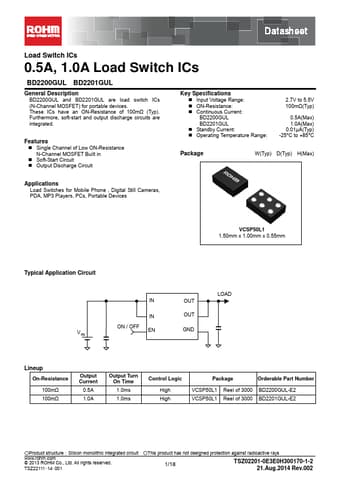

BD2200GUL Datasheet Preview — Preview of BD2200GUL PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	BD2200GUL
Manufacturer	ROHM ↗
File Size	663.22 KB
Description	Load Switch ICs
Datasheet	BD2200GUL_Rohm.pdf

BD2200GUL Product details

Description

BD2200GUL and BD2201GUL are load switch ICs (N-Channel MOSFET) for portable devices.

Features

Single Channel of Low ON-Resistance N-Channel MOSFET Built in.
Soft-Start Circuit.
Output Discharge Circuit Key Specifications.
Input Voltage Range:.
ON-Resistance:.
Continuous Current: BD2200GUL BD2201GUL.
Standby Current:.
Operating Temperature Range: 2.7V to 5.5V 100mΩ(Typ) 0.5A(Max) 1.0A(Max) 0.01μA(Typ) -25°C to +85°C Package W(Typ) D(Typ) H(Max).
