BU2381FV Multimedia ICs Clock generator

Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 Pin name REFCLK VDD FS3 VSS XIN TEST XOUT FS2 CLK1OUT FS1 CLK2ON VSS VDD CLK2OUT VSS VDD Functions 14.3MHz / 17.7MHz clock output Analog VDD CLK1, 2 output select with pull up Analog GND Standard crystal input Input for test mode (normally open) Standa.

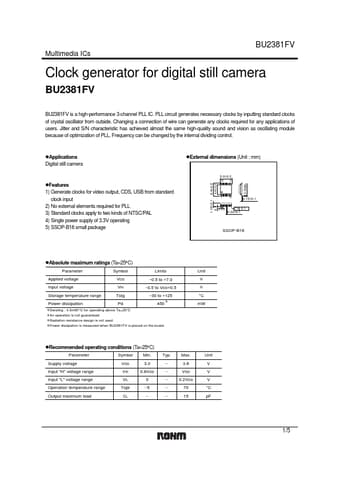

www.DataSheet4U.com BU2381FV Multimedia ICs Clock generator for digital still camera BU2381FV BU2381FV is a high-performance 3-channel PLL IC. PLL circuit generates necessary clocks by inputting standard clocks of crystal oscillator from outside. Changing a connection of wire can generate any clocks required for any applications of users. Jitter and S/N characteristic has achieved almost the same high-quality sound and vision as oscillating module because of optimization of PLL. Frequency can .

BU2381FV Features

* 1) Generate clocks for video output, CDS, USB from standard clock input 2) No external elements required for PLL 3) Standard clocks apply to two kinds of NTSC/PAL 4) Single power supply of 3.3V operating 5) SSOP-B16 small package 16 9 6.4±0.3 4.4±0.2 1 8 1.15±0.1 0.1 0.15±0.1 0.1 0.65 0.22±
