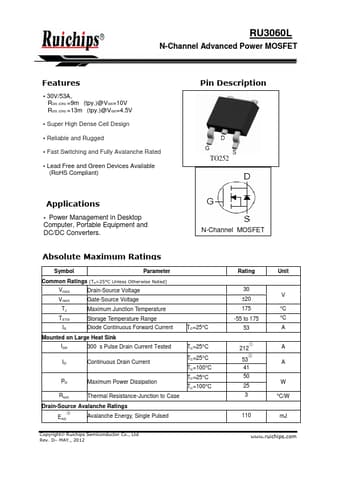

RU3060L Datasheet, MOSFET, Ruichips

RU3060L Features

Mosfet
30V/53A, RDS (ON) =9mΩ(tpy.)@VGS=10V RDS (ON) =13mΩ(tpy.)@VGS=4.5V
Super High Dense Cell Design
Reliable and Rugged
Fast Switching and Fully Aval

PDF File Details

Part number:

RU3060L

Manufacturer:

Ruichips

File Size:

322.13kb

Download:

📄 Datasheet

Description:

N-channel advanced power mosfet. TO252 Applications

Power Management in Desktop Computer, Portable Equipment and DC/DC Converters. N-Channel MOSFET Absol

📥 Download PDF (322.13kb)

RU3060L Application

Applications
Power Management in Desktop Computer, Portable Equipment and DC/DC Converters. N-Channel MOSFET Absolute Maximum Ratings S
