RU3065L Datasheet, MOSFET, Ruichips

RU3065L Features

• Mosfet
• 30V/65A, RDS (ON) =4mΩ (Typ.)@VGS=10V RDS (ON) =6mΩ (Typ.)@VGS=4.5V
• Super High Dense Cell Design
• Ultra Low On-Resistance
• 100% avalanche tested

PDF File Details

Part number:

RU3065L

Manufacturer:

Ruichips

File Size:

289.21kb

Download:

📄 Datasheet

Description:

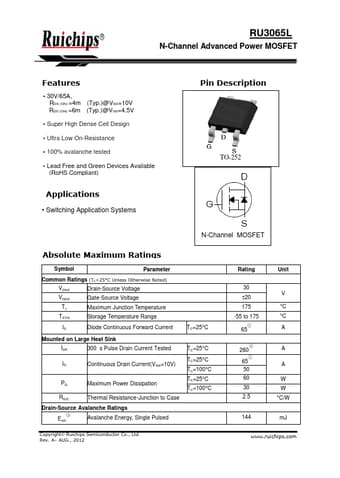

N-channel advanced power mosfet. TO-252 N-Channel MOSFET Absolute Maximum Ratings Symbol Parameter Common Ratings (TC=25°C Unless Otherwise Noted) VDSS Drain-S

RU3065L Application

• Applications
• Switching Application Systems Pin Description TO-252 N-Channel MOSFET Absolute Maximum Ratings Symbol Parameter Common
