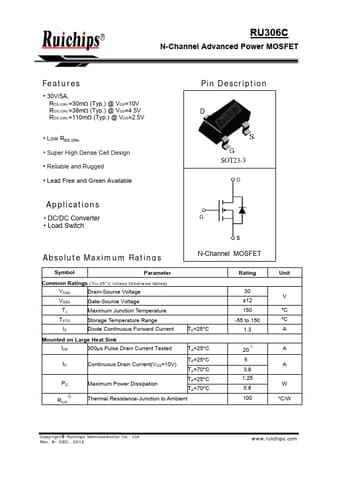

RU306C Datasheet, MOSFET, Ruichips

RU306C Features

• Mosfet
• 30V/5A, RDS (ON) =30m (Typ.) @ VGS=10V RDS (ON) =38m (Typ.) @ VGS=4.5V RDS (ON) =110m (Typ.) @ VGS=2.5V
• Low RDS (ON)
• Super High Dense Cell Design
<

PDF File Details

Part number:

RU306C

Manufacturer:

Ruichips

File Size:

291.55kb

Download:

📄 Datasheet

Description:

N-channel advanced power mosfet. SOT23-3 Absolute Maximum Ratings N-Channel MOSFET Symbol Parameter Common Ratings (TA=25°C Unless Otherwise Noted) VDSS Drain-

RU306C Application

• Applications
• DC/DC Converter
• Load Switch Pin Description SOT23-3 Absolute Maximum Ratings N-Channel MOSFET Symbol Parameter
